Gaussian Processes

%pip install pymc pytensor

Requirement already satisfied: pymc in /usr/local/lib/python3.12/dist-packages (5.28.5)
Requirement already satisfied: pytensor in /usr/local/lib/python3.12/dist-packages (2.38.3)
Requirement already satisfied: arviz<1.0,>=0.13.0 in /usr/local/lib/python3.12/dist-packages (from pymc) (0.22.0)
Requirement already satisfied: cachetools<7,>=4.2.1 in /usr/local/lib/python3.12/dist-packages (from pymc) (6.2.6)
Requirement already satisfied: cloudpickle in /usr/local/lib/python3.12/dist-packages (from pymc) (3.1.2)
Requirement already satisfied: numpy>=1.25.0 in /usr/local/lib/python3.12/dist-packages (from pymc) (2.0.2)
Requirement already satisfied: pandas>=0.24.0 in /usr/local/lib/python3.12/dist-packages (from pymc) (2.2.2)
Requirement already satisfied: rich>=13.7.1 in /usr/local/lib/python3.12/dist-packages (from pymc) (13.9.4)
Requirement already satisfied: scipy>=1.4.1 in /usr/local/lib/python3.12/dist-packages (from pymc) (1.16.3)
Requirement already satisfied: threadpoolctl<4.0.0,>=3.1.0 in /usr/local/lib/python3.12/dist-packages (from pymc) (3.6.0)
Requirement already satisfied: typing-extensions>=3.7.4 in /usr/local/lib/python3.12/dist-packages (from pymc) (4.15.0)
Requirement already satisfied: setuptools>=59.0.0 in /usr/local/lib/python3.12/dist-packages (from pytensor) (75.2.0)
Requirement already satisfied: numba<=0.65.1,>=0.58 in /usr/local/lib/python3.12/dist-packages (from pytensor) (0.60.0)
Requirement already satisfied: filelock>=3.15 in /usr/local/lib/python3.12/dist-packages (from pytensor) (3.29.1)
Requirement already satisfied: etuples in /usr/local/lib/python3.12/dist-packages (from pytensor) (0.3.10)
Requirement already satisfied: logical-unification in /usr/local/lib/python3.12/dist-packages (from pytensor) (0.4.7)
Requirement already satisfied: miniKanren in /usr/local/lib/python3.12/dist-packages (from pytensor) (1.0.5)
Requirement already satisfied: cons in /usr/local/lib/python3.12/dist-packages (from pytensor) (0.4.7)
Requirement already satisfied: matplotlib>=3.8 in /usr/local/lib/python3.12/dist-packages (from arviz<1.0,>=0.13.0->pymc) (3.10.0)
Requirement already satisfied: packaging in /usr/local/lib/python3.12/dist-packages (from arviz<1.0,>=0.13.0->pymc) (26.2)
Requirement already satisfied: xarray>=2023.7.0 in /usr/local/lib/python3.12/dist-packages (from arviz<1.0,>=0.13.0->pymc) (2025.12.0)
Requirement already satisfied: h5netcdf>=1.0.2 in /usr/local/lib/python3.12/dist-packages (from arviz<1.0,>=0.13.0->pymc) (1.8.1)
Requirement already satisfied: xarray-einstats>=0.3 in /usr/local/lib/python3.12/dist-packages (from arviz<1.0,>=0.13.0->pymc) (0.10.0)
Requirement already satisfied: llvmlite<0.44,>=0.43.0dev0 in /usr/local/lib/python3.12/dist-packages (from numba<=0.65.1,>=0.58->pytensor) (0.43.0)
Requirement already satisfied: python-dateutil>=2.8.2 in /usr/local/lib/python3.12/dist-packages (from pandas>=0.24.0->pymc) (2.9.0.post0)
Requirement already satisfied: pytz>=2020.1 in /usr/local/lib/python3.12/dist-packages (from pandas>=0.24.0->pymc) (2025.2)
Requirement already satisfied: tzdata>=2022.7 in /usr/local/lib/python3.12/dist-packages (from pandas>=0.24.0->pymc) (2026.2)
Requirement already satisfied: markdown-it-py>=2.2.0 in /usr/local/lib/python3.12/dist-packages (from rich>=13.7.1->pymc) (4.2.0)
Requirement already satisfied: pygments<3.0.0,>=2.13.0 in /usr/local/lib/python3.12/dist-packages (from rich>=13.7.1->pymc) (2.20.0)
Requirement already satisfied: toolz in /usr/local/lib/python3.12/dist-packages (from logical-unification->pytensor) (0.12.1)
Requirement already satisfied: multipledispatch in /usr/local/lib/python3.12/dist-packages (from logical-unification->pytensor) (1.0.0)
Requirement already satisfied: mdurl~=0.1 in /usr/local/lib/python3.12/dist-packages (from markdown-it-py>=2.2.0->rich>=13.7.1->pymc) (0.1.2)
Requirement already satisfied: contourpy>=1.0.1 in /usr/local/lib/python3.12/dist-packages (from matplotlib>=3.8->arviz<1.0,>=0.13.0->pymc) (1.3.3)
Requirement already satisfied: cycler>=0.10 in /usr/local/lib/python3.12/dist-packages (from matplotlib>=3.8->arviz<1.0,>=0.13.0->pymc) (0.12.1)
Requirement already satisfied: fonttools>=4.22.0 in /usr/local/lib/python3.12/dist-packages (from matplotlib>=3.8->arviz<1.0,>=0.13.0->pymc) (4.63.0)
Requirement already satisfied: kiwisolver>=1.3.1 in /usr/local/lib/python3.12/dist-packages (from matplotlib>=3.8->arviz<1.0,>=0.13.0->pymc) (1.5.0)
Requirement already satisfied: pillow>=8 in /usr/local/lib/python3.12/dist-packages (from matplotlib>=3.8->arviz<1.0,>=0.13.0->pymc) (11.3.0)
Requirement already satisfied: pyparsing>=2.3.1 in /usr/local/lib/python3.12/dist-packages (from matplotlib>=3.8->arviz<1.0,>=0.13.0->pymc) (3.3.2)
Requirement already satisfied: six>=1.5 in /usr/local/lib/python3.12/dist-packages (from python-dateutil>=2.8.2->pandas>=0.24.0->pymc) (1.17.0)

import numpy as np
import matplotlib.pyplot as plt
from scipy import stats
import pymc as pm

Covariance Functions and Kernel

def exp_quad_kernel(x,knots,l=1):
  return np.array([np.exp(-(x-k)**2/(2*l**2)) for k in knots])

data = np.array([-1,0,1,2])
#data = np.array([-1,0])
cov = exp_quad_kernel(data,data,1)

print(cov)

[[1.         0.60653066 0.13533528 0.011109  ]
 [0.60653066 1.         0.60653066 0.13533528]
 [0.13533528 0.60653066 1.         0.60653066]
 [0.011109   0.13533528 0.60653066 1.        ]]

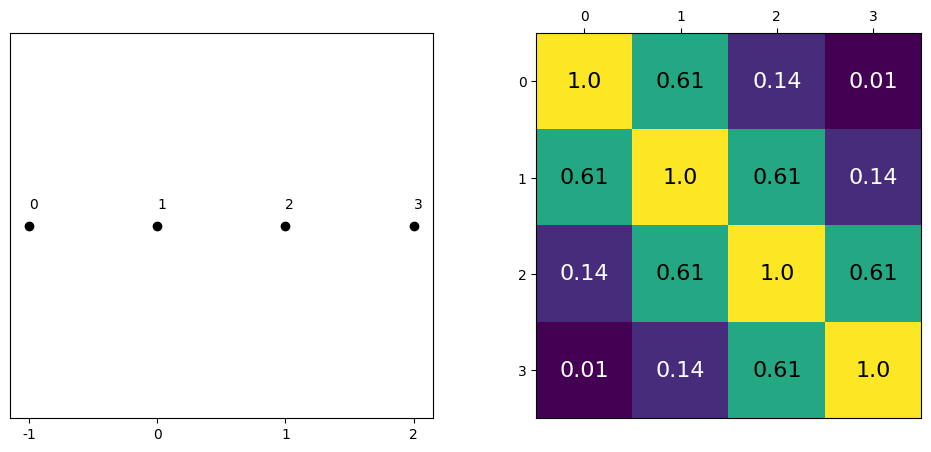

_, ax=plt.subplots(1,2,figsize=(12,5))

ax[0].plot(data, np.zeros_like(data),'ko')
ax[0].set_yticks([])

for idx,i in enumerate(data):
  ax[0].text(i,0+0.005, idx)
ax[0].set_xticks(data)
ax[0].set_xticklabels(np.round(data,2))

ax[1].grid(False)
im = ax[1].imshow(cov)
colors=['w','k']

for i in range(len(cov)):
  for j in range(len(cov)):
    ax[1].text(i,j, round(cov[i,j],2), color=colors[int(im.norm(cov[i,j])>0.5)], ha = 'center', va='center', fontdict={'size':16})

ax[1].set_xticks(range(len(data)))
ax[1].set_yticks(range(len(data)))
ax[1].xaxis.tick_top()

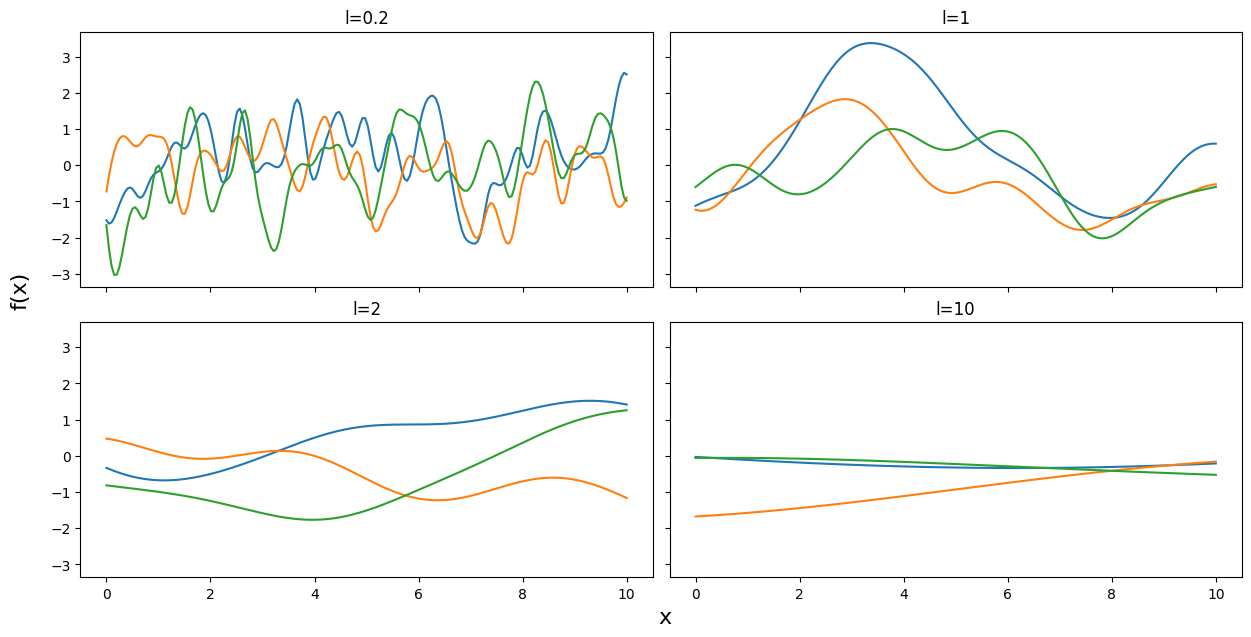

np.random.seed(24)
test_points = np.linspace(0,10,200)
fig, ax = plt.subplots(2,2,figsize=(12,6),sharex=True,sharey=True,constrained_layout=True)
ax = np.ravel(ax)
for idx, l in enumerate((0.2,1,2,10)):
  cov = exp_quad_kernel(test_points, test_points, l)
  ax[idx].plot(test_points, stats.multivariate_normal.rvs(cov=cov,size=3).T)
  ax[idx].set_title(f'l={l}')

fig.text(0.51,-0.03,'x', fontsize=16)
fig.text(-0.03,0.5,'f(x)', fontsize=16, rotation=90)

Text(-0.03, 0.5, 'f(x)')

Gaussian Processes: Implementation

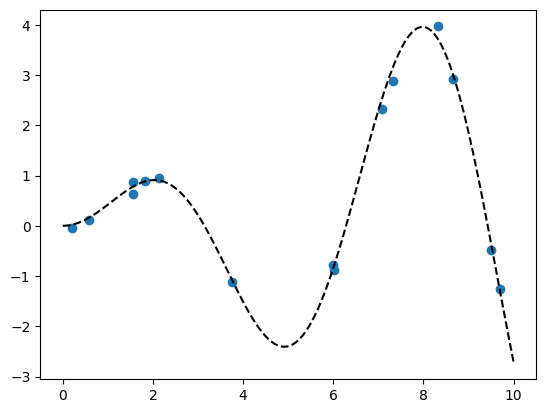

np.random.seed(42)

x = np.random.uniform(0,10,size=15)

scale = 0.50
y = np.random.normal(scale*x*np.sin(x), 0.1)

plt.plot(x,y,'o')

true_x = np.linspace(0,10,200)
true_y = scale*true_x*np.sin(true_x)
plt.plot(true_x,true_y, 'k--')

[<matplotlib.lines.Line2D at 0x7f12a61ec1a0>]

X = x[:,None]

with pm.Model() as model_reg:
  #hyperprior for lengthscale kernel parameter
  l = pm.Gamma('l',2,0.5)
  #instantiate a covariance function
  cov = pm.gp.cov.ExpQuad(1,ls=l)
  #mean = pm.gp.mean.Constant(c=0)
  #instantiate a GP prior
  gp = pm.gp.Marginal(cov_func=cov)#mean_func=mean,
  #prior
  eps = pm.HalfNormal('eps',25)
  #likelihood
  y_pred = gp.marginal_likelihood('y_pred',X=X, y=y, sigma=eps)
  trace_reg = pm.sample(2000, return_inferencedata=True, target_accept=0.95)

Notes

In GP regression, the marginal likelihood is the probability of the observed data after integrating out (analytically) the unknown function values. The marginal likelihood is needed for two main reasons.

1. It defines the likelihood used to infer the GP hyperparameters

2. It is the basis for making predictions at new points.

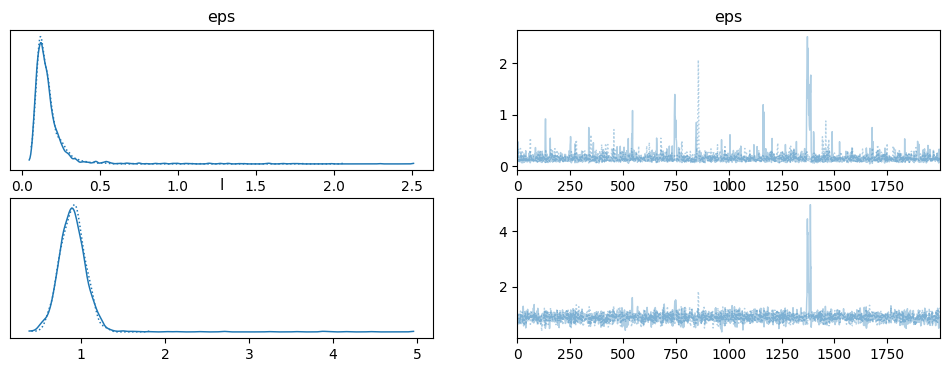

import arviz as az
az.plot_trace(trace_reg)

array([[<Axes: title={'center': 'eps'}>, <Axes: title={'center': 'eps'}>],
       [<Axes: title={'center': 'l'}>, <Axes: title={'center': 'l'}>]],
      dtype=object)

az.summary(trace_reg)

	mean	sd	hdi_3%	hdi_97%	mcse_mean	mcse_sd	ess_bulk	ess_tail	r_hat
eps	0.177	0.145	0.069	0.312	0.008	0.036	1640.0	752.0	1.0
l	0.907	0.215	0.626	1.198	0.009	0.043	1552.0	1387.0	1.0

X_new = np.linspace(np.floor(x.min()), np.ceil(x.max()), 100)[:,None]

with model_reg:
    #del marginal_gp_model.named_vars['f_pred']
    #marginal_gp_model.vars.remove(f_pred)
    f_pred = gp.conditional('f_pred', X_new)

with model_reg:
    pred_samples = pm.sample_posterior_predictive(trace_reg, var_names=['f_pred'])

pred_samples

arviz.InferenceData

• posterior_predictive

  <xarray.Dataset> Size: 3MB
  Dimensions:       (chain: 2, draw: 2000, f_pred_dim_0: 100)
  Coordinates:
    * chain         (chain) int64 16B 0 1
    * draw          (draw) int64 16kB 0 1 2 3 4 5 ... 1995 1996 1997 1998 1999
    * f_pred_dim_0  (f_pred_dim_0) int64 800B 0 1 2 3 4 5 6 ... 94 95 96 97 98 99
  Data variables:
      f_pred        (chain, draw, f_pred_dim_0) float64 3MB -0.2429 ... -1.473
  Attributes:
      created_at:                 2026-06-10T13:53:04.545543+00:00
      arviz_version:              0.22.0
      inference_library:          pymc
      inference_library_version:  5.28.5

  xarray.Dataset

  • Dimensions:
    • chain: 2
    • draw: 2000
    • f_pred_dim_0: 100
  • Coordinates: (3)
    • chain
      (chain)
      int64
      0 1

      array([0, 1])

    • draw
      (draw)
      int64
      0 1 2 3 4 ... 1996 1997 1998 1999

      array([   0,    1,    2, ..., 1997, 1998, 1999])

    • f_pred_dim_0
      (f_pred_dim_0)
      int64
      0 1 2 3 4 5 6 ... 94 95 96 97 98 99

      array([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14, 15, 16, 17,
             18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35,
             36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53,
             54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71,
             72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89,
             90, 91, 92, 93, 94, 95, 96, 97, 98, 99])

  • Data variables: (1)
    • f_pred
      (chain, draw, f_pred_dim_0)
      float64
      -0.2429 -0.1849 ... -1.349 -1.473

      array([[[-2.42944522e-01, -1.84889169e-01, -1.14665973e-01, ...,
               -1.42117120e+00, -1.68588190e+00, -1.91078762e+00],
              [-3.90718867e-02,  9.48452603e-04,  3.25088892e-02, ...,
               -1.47221942e+00, -1.70541911e+00, -1.90164621e+00],
              [-1.06523248e-01, -9.83926920e-02, -9.17871740e-02, ...,
               -8.59229824e-01, -8.68483136e-01, -8.09928047e-01],
              ...,
              [-2.61875753e-01, -1.88950859e-01, -1.21118413e-01, ...,
               -1.14837553e+00, -1.28534616e+00, -1.37940736e+00],
              [-5.30899866e-01, -3.55279495e-01, -1.91673590e-01, ...,
               -1.35600883e+00, -1.37662114e+00, -1.26136023e+00],
              [-3.19904202e-02,  3.98120419e-02,  8.24527444e-02, ...,
               -1.77923773e+00, -2.17212356e+00, -2.52321204e+00]],

             [[ 2.61895019e-01,  2.17570524e-01,  1.92265962e-01, ...,
               -1.52267886e+00, -1.65382815e+00, -1.70394797e+00],
              [ 2.29306670e-02, -6.75435252e-02, -1.33215475e-01, ...,
               -1.33563320e+00, -1.45810233e+00, -1.52002885e+00],
              [ 2.01869599e-02,  2.27158752e-02,  4.63507748e-03, ...,
               -1.33902064e+00, -1.51558479e+00, -1.65896949e+00],
              ...,
              [-3.25212659e-01, -2.60774389e-01, -1.92301618e-01, ...,
               -1.54593335e+00, -1.82242915e+00, -2.04621362e+00],
              [-1.42368105e-01, -9.33790762e-02, -3.31889526e-02, ...,
               -1.47781645e+00, -1.69462213e+00, -1.86191780e+00],
              [-5.05013401e-01, -3.97601207e-01, -2.83756947e-01, ...,
               -1.18020623e+00, -1.34869881e+00, -1.47275628e+00]]])

  • Attributes: (4)

    created_at :

    2026-06-10T13:53:04.545543+00:00

    arviz_version :

    0.22.0

    inference_library :

    pymc

    inference_library_version :

    5.28.5



• observed_data

  <xarray.Dataset> Size: 240B
  Dimensions:       (y_pred_dim_0: 15)
  Coordinates:
    * y_pred_dim_0  (y_pred_dim_0) int64 120B 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14
  Data variables:
      y_pred        (y_pred_dim_0) float64 120B -1.12 -0.4835 ... 0.9431 0.8937
  Attributes:
      created_at:                 2026-06-10T13:53:04.558370+00:00
      arviz_version:              0.22.0
      inference_library:          pymc
      inference_library_version:  5.28.5

  xarray.Dataset

  • Dimensions:
    • y_pred_dim_0: 15
  • Coordinates: (1)
    • y_pred_dim_0
      (y_pred_dim_0)
      int64
      0 1 2 3 4 5 6 7 8 9 10 11 12 13 14

      array([ 0,  1,  2,  3,  4,  5,  6,  7,  8,  9, 10, 11, 12, 13, 14])

  • Data variables: (1)
    • y_pred
      (y_pred_dim_0)
      float64
      -1.12 -0.4835 ... 0.9431 0.8937

      array([-1.12042313, -0.48349416,  2.88908801, -0.77981502,  0.8616938 ,
              0.62753908,  0.1165545 ,  2.91885168, -0.87790937,  2.31966448,
             -0.04191073, -1.25393673,  3.96600733,  0.94310182,  0.8936542 ])

  • Attributes: (4)

    created_at :

    2026-06-10T13:53:04.558370+00:00

    arviz_version :

    0.22.0

    inference_library :

    pymc

    inference_library_version :

    5.28.5

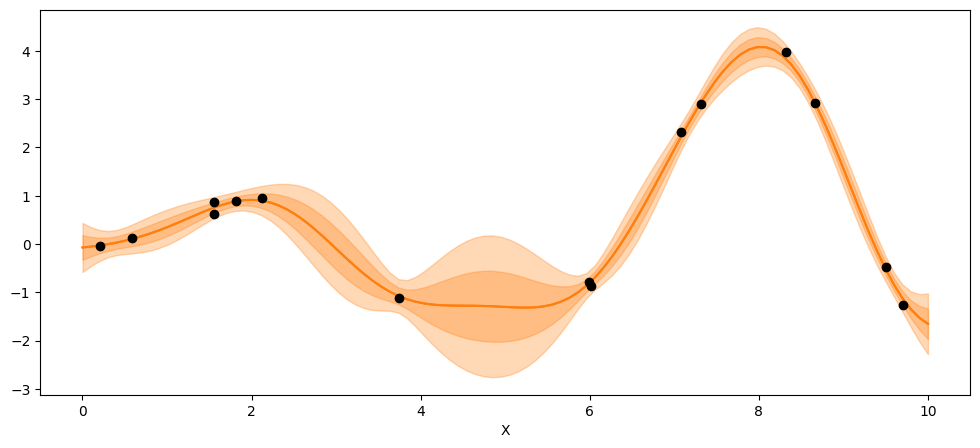

Analytic GP prediction at one hyperparameter point

_, ax = plt.subplots(figsize=(12,5))
point = {'l': trace_reg.posterior['l'].mean(), 'eps':trace_reg.posterior['eps'].mean()}


# Xnew: The new input locations where you want to predict the function values.
# point: A dictionary containing the parameter values to evaluate the GP at (e.g., length scale, amplitude).
#        If None, PyMC uses the default values defined in your model.
# diag: If True, returns only the diagonal of the covariance matrix instead of the full covariance.

mu, var = gp.predict(X_new, point=point, diag=True, model = model_reg)
sd = var**0.5

ax.plot(X_new,mu,'C1')
ax.fill_between(X_new.flatten(),mu-sd,mu+sd, color="C1",alpha=0.3)

ax.plot(X_new,mu,'C1')
ax.fill_between(X_new.flatten(),mu-2*sd,mu+2*sd, color="C1",alpha=0.3)

ax.plot(X,y,'ko')
ax.set_xlabel('X')

Text(0.5, 0, 'X')

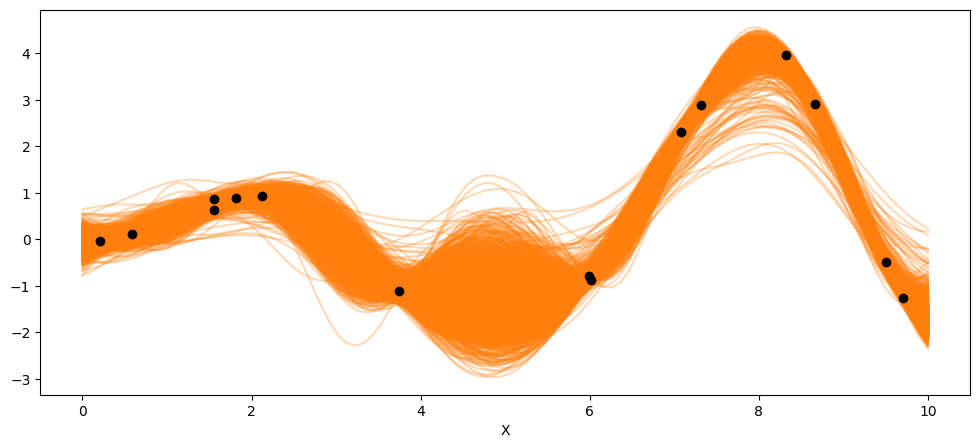

Posterior predictive function samples

print(np.shape(pred_samples.posterior_predictive['f_pred'].mean(axis=0).T))
print(np.shape(X_new))

(100, 2000)
(100, 1)

_, ax = plt.subplots(figsize=(12,5))
ax.plot(X_new, pred_samples.posterior_predictive['f_pred'].mean(axis=0).T, 'C1-', alpha=0.3)
ax.plot(X, y, 'ko')
ax.set_xlabel('X')

Text(0.5, 0, 'X')

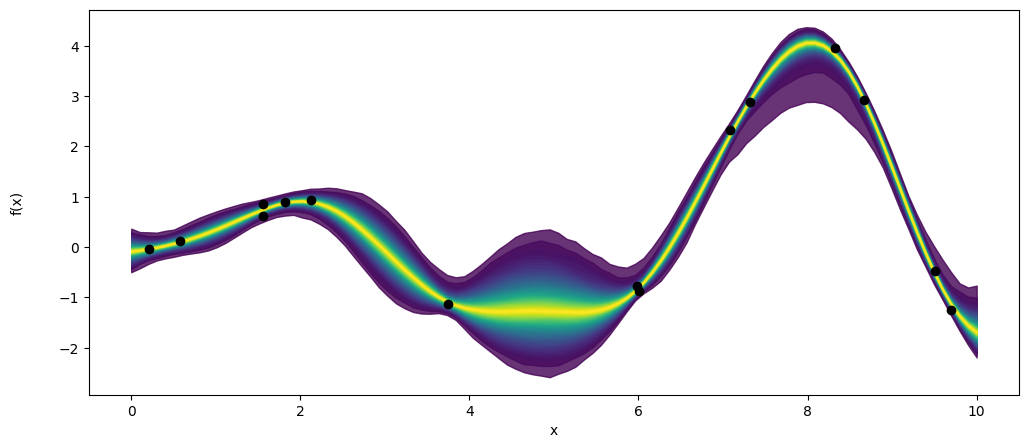

_, ax = plt.subplots(figsize=(12,5))
pm.gp.util.plot_gp_dist(ax, pred_samples.posterior_predictive['f_pred'].mean(axis=0), X_new, palette='viridis',plot_samples=False)

ax.plot(X,y,'ko')
ax.set_xlabel('x')
ax.set_ylabel('f(x)',labelpad=25)

Text(0, 0.5, 'f(x)')
